SKU: 64036-LF
(0)

X2-LED (Gen 2) LED Module for Insight/EOTech X2, X2LP #64036-LF

Lumens Factory
Out of stock
$53.50

Secure checkout

Friendly support

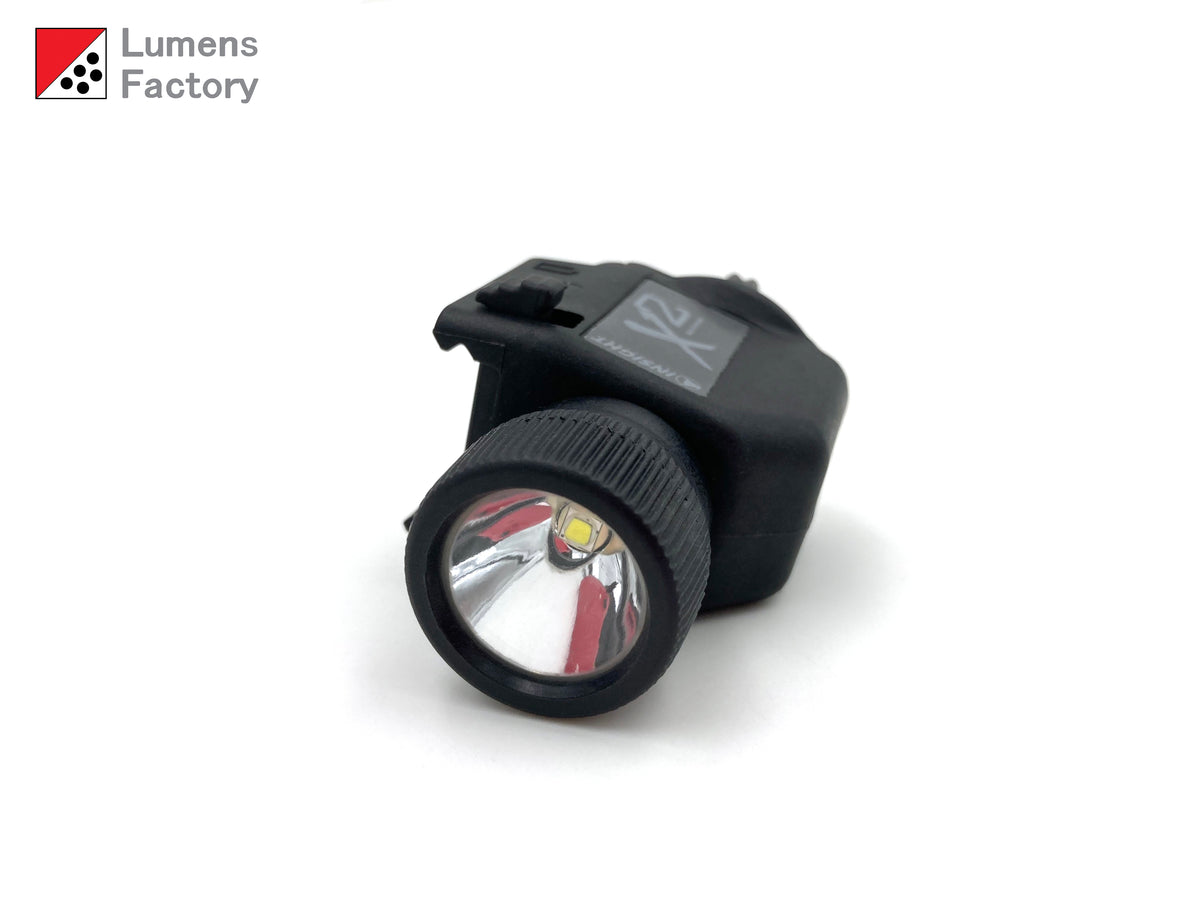

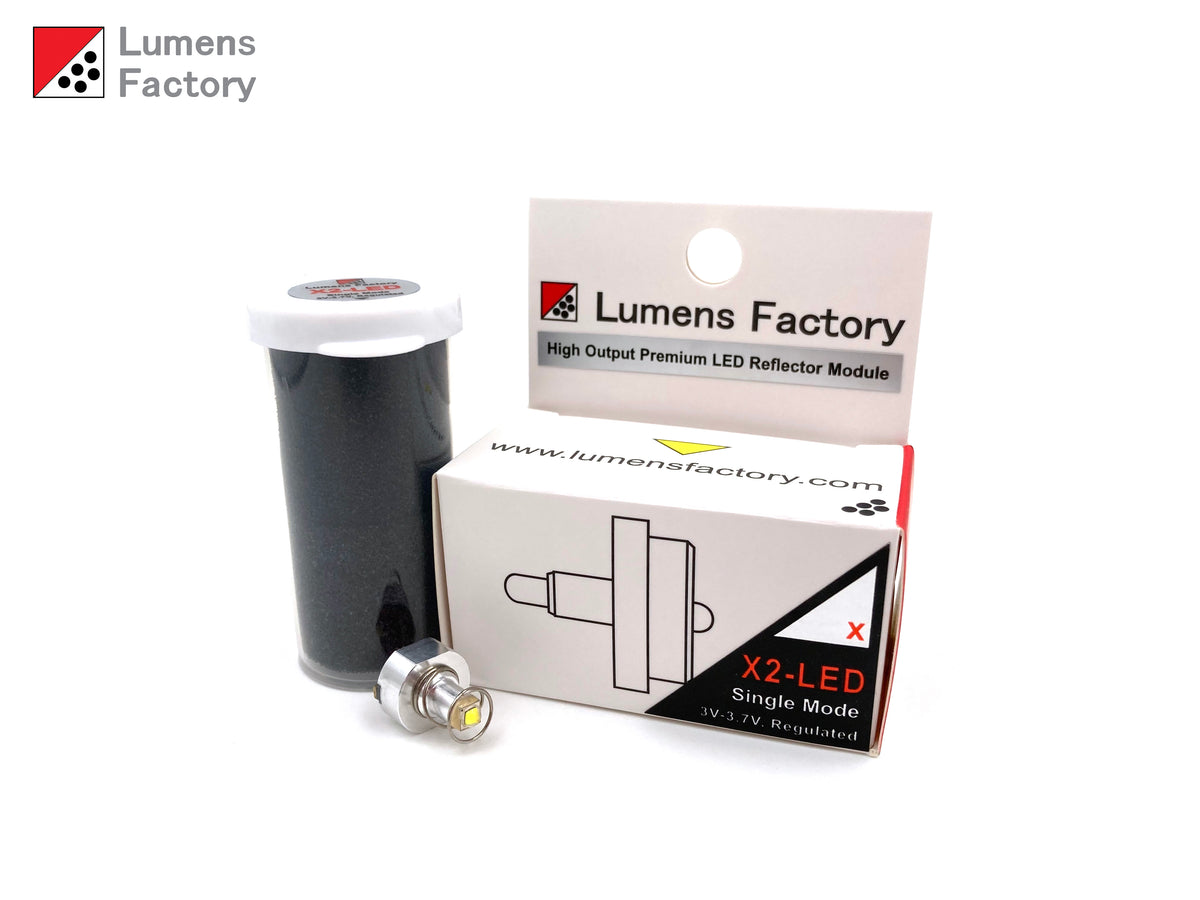

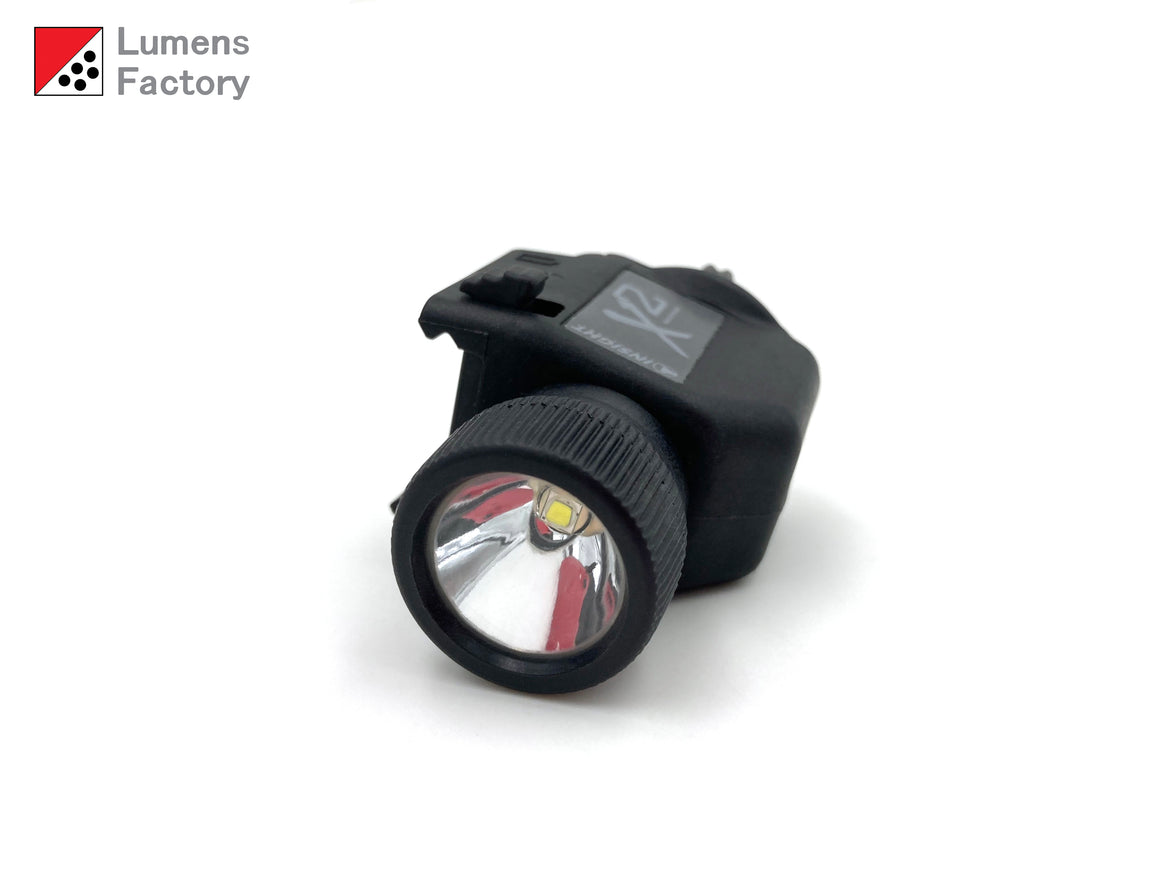

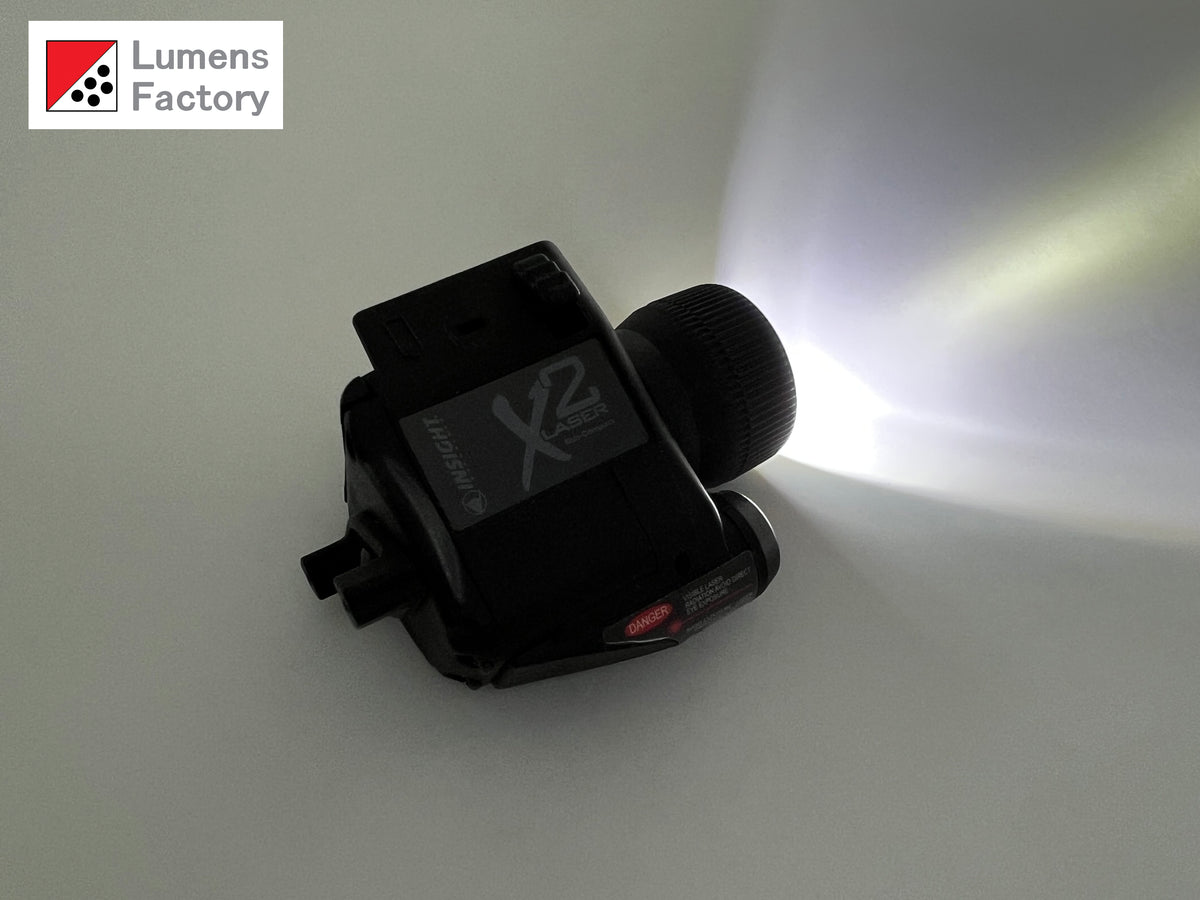

X2-LED High Output Single Mode LED Tower Module
(3V-4.5V Regulated Output)


Generation 2: New Driver Circuit used resulting in much improved stability and higher output. (February, 2024)

-High Output XPG2, S6 LED (Max Output 500 Lumens)
-3V-4.5V Regulated Output
-Maximum Current Output at 1000mA
-Cool White, Cool Colour Temperature (6500K)
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Thermal Protection Warning
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Insight / EOTech

X2 (Incandescent model)
X2L (Incandescent model)
Springfield Armory XML (Incandescent model)

***This module is ONLY compatible with incandescent versions of the X2 and X2L***
***This module is NOT compatible with X2 LED and X2L LED or any other lights that is not on the compatibility chart.***
***This module is NOT compatible with lights that has been converted to LED with Insight's LED Conversion Kit***

Runtime:

1 x CR2 Primary Cell: ~1 hour
1 x 3.7V Rechargeable CR2 Cell: ~45 mins
***Do NOT use 3.7V Rechargable Batteries on the X2L***

***Heat Warning: This is a high output LED module that produce excessive heat. Do not operate constantly for more than 20 mins to avoid overheating.***
