USHIO 5000371 UXL-75XE #21314 FREE GROUND SHIPPING

UXL-75XE

Ushio’s UXL series are high pressure, short-arc xenon discharge lamps. UXL spectral distribution is well balanced in the visible spectrum to resemble daylight. The high gas fill pressure provides high luminance and high luminous efficacy. Fast ignition and a stable arc are what Ushio has achieved with the UXL lamp design.

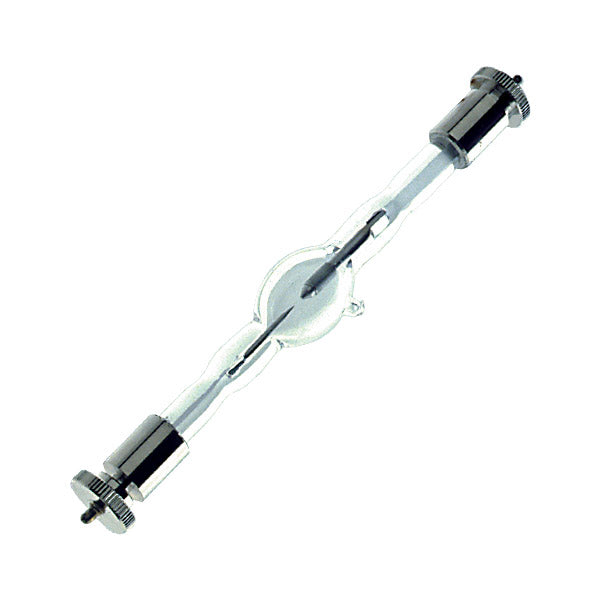

The USHIO UXL-75XE (part #5000371) is a 65-watt short-arc xenon lamp delivering 1,000 lumens with a compact 0.8mm arc gap for exceptional point-source brightness. Rated for 400 hours of average life and suitable for both vertical and horizontal burn positions (V10/H10), it is widely used in scientific and optical instrumentation including fluorescence microscopy, monochromators, and spectroscopy systems. Compatible with Leitz, Nikon, Olympus, and Zeiss equipment.

Specifications

Wattage: 65W

Amperage 4.6A - 5.4A

Voltage: 12.5V

Lumens: 1000 lm

Arc Gap: 0.8mm

Average Life: 400 hrs

Burn Position: V10/H10

Manufacturer: USHIO

Manufacturer's Part Number: 5000371

Equipment Used In: Leitz 500-139, Monochrometer, Nikon 78682, Olympus 8B198, Short Arc Xenon Burner, Zeiss 38-16-02, Zeiss 3800-79-9190, Zeiss 91-01-42, Zeiss 910881-2013

Since being established in 1967, Ushio and its group companies have evolved to become a photonics solutions provider. Ushio continually invests in educating employees, technical capabilities, and its manufacturing sites across the globe to create solutions for their customers and solve problems with light.

Light solutions at Ushio can range from EUV Semiconductor light sources the size of a bus down to a sensor LED the size of a fingernail. Cinema lamps and laser light projectors are installed for the largest premium screens. Intelligent LED lighting for entertainment production to multispectral medical imaging systems. Architectural lighting creates a beautiful environment while horticulture lamps grow food in optimal conditions to save water and the environment. Care222® technology, developed and researched by Ushio, inactivates viruses when people are present. Ushio is one of the world’s largest specialty light source companies.

Ushio is fundamentally involved in all areas of the electromagnetic spectrum from extreme UV to visible to far IR. Our knowledge of wavelength, power, packaging, module, system as well as active and passive selection enables us to present the best solution for your application.

FEATURES

The luminance of the arc of Ushio xenon short arc lamps is very high while the size is very small. Thus, Ushio xenon short arc lamps are used in applications such as searchlights and projects.

Ushio xenon short arc lamps display a near continuous spectral output in the visible region of light making the color rendering quality very close to natural daylight, a feature that has many advantages when using the lamps in applications as a standard light source. Ushio xenon short arc lamps also have a relatively strong distribution in the infrared region of the spectrum and are used as infrared radiation sources as well.

Ushio xenon short arc lamps ignite and stabilize in moments compared with mercury arc lamps which require several minutes to reach stable operation. Also, the color does not vary as result of input power variations.

APPLICATIONS

• Microscopes
• Medical Equipment
• Spectral Luminosity Measurement Apparatus
• Infrared Communications
• High Luminosity Optical Measurements and Experiments
• Plant Growth Experiments
• Standard Daylight
