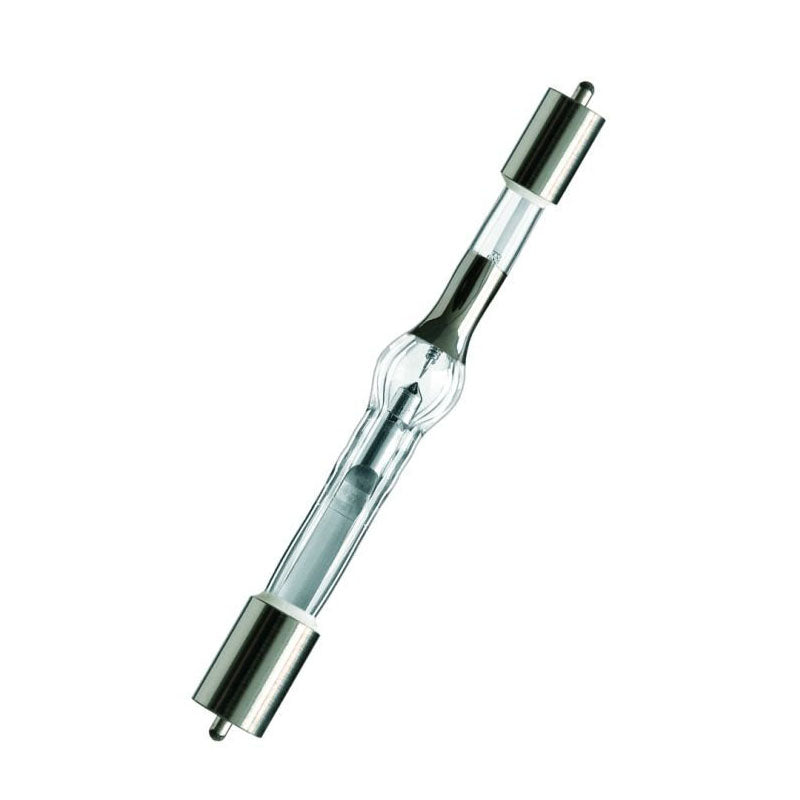

USHIO 5000274 USH-102DH #21303

Mercury Short Arc Lamp

Short-Arc Mercury Ushio America, a respected leader in specialty lighting, brings you the latest advancement in lamp technology with our extended life 100W short arc mercury lamp.

The USHIO USH-102DH (part #5000274) is a 100-watt high-pressure mercury short-arc lamp introduced in the early 1980s specifically for use in Nikon fluorescence microscopes. What sets this lamp apart is its horizontal burn orientation — the "H" in the suffix — which is required by Nikon’s horizontal lamp housing design. To prevent accidental substitution, USHIO and Nikon engineered the USH-102DH with a smaller 2.0mm pin thickness, ensuring that vertical-burn lamps like the USH-102D or Osram HBO 100W/2 (with 2.5mm pins) cannot be inadvertently installed.

Specifications

Wattage: 100W

Voltage: 20V

Average Life: 200 hrs

MOL: 90 mm (3.54 in)

Manufacturer: USHIO

Manufacturer's Part  Number: 5000274

Applications: Medical & Microscope

Cross Reference: Osram HBO 100/2 (69217), HBO 100W/2 100 watt (100w) 20 volt (20v)

Since being established in 1967, Ushio and its group companies have evolved to become a photonics solutions provider. Ushio continually invests in educating employees, technical capabilities, and its manufacturing sites across the globe to create solutions for their customers and solve problems with light.

Light solutions at Ushio can range from EUV Semiconductor light sources the size of a bus down to a sensor LED the size of a fingernail. Cinema lamps and laser light projectors are installed for the largest premium screens. Intelligent LED lighting for entertainment production to multispectral medical imaging systems. Architectural lighting creates a beautiful environment while horticulture lamps grow food in optimal conditions to save water and the environment. Care222® technology, developed and researched by Ushio, inactivates viruses when people are present. Ushio is one of the world’s largest specialty light source companies.

Ushio is fundamentally involved in all areas of the electromagnetic spectrum from extreme UV to visible to far IR. Our knowledge of wavelength, power, packaging, module, system as well as active and passive selection enables us to present the best solution for your application.

Ushio's USH and UXM short arc mercury and mercury xenon lamps are characterized by their tightly confined plasma discharge, high luminance, ultra stable arc, and diverse spectral outputs in both ultraviolet and visible light regions for both DC and AC operated systems.

Ushio lamps are used across all microscopy units, diagnostic devices, and industrial analytical equipment including spectro fluorometers, blood analyzers, optical comparators, and UV curing applications. Our latest line of USH lamps features precision aligned mercury burners and specialized reflector designs for ultimate reflectivity and light channeling control in fiber optic applications. Designed and manufactured to the highest standards in our Japan ISO certified facilities.

Continuous upgrades in electrode material technology and investments in cutting edge manufacturing processes enable Ushio to further improve light versus life degradation characteristics.

Features & Benefits

• Enhanced Electrode Design for Precise Positioning and High Arc Stability
• Improved Manufacturing Process Enables Extended Life (300 Hours)
• Ushio Developed Product With Tightly Controlled ISO Quality Processes
• Designed for Use in All 100W Fluorescent Microscope Systems

Applications

• TOC Monitor
• Microscope Systems
• Spectrofluorometers
• Blood Analyzers
• Optical Comparators
• UV curing
