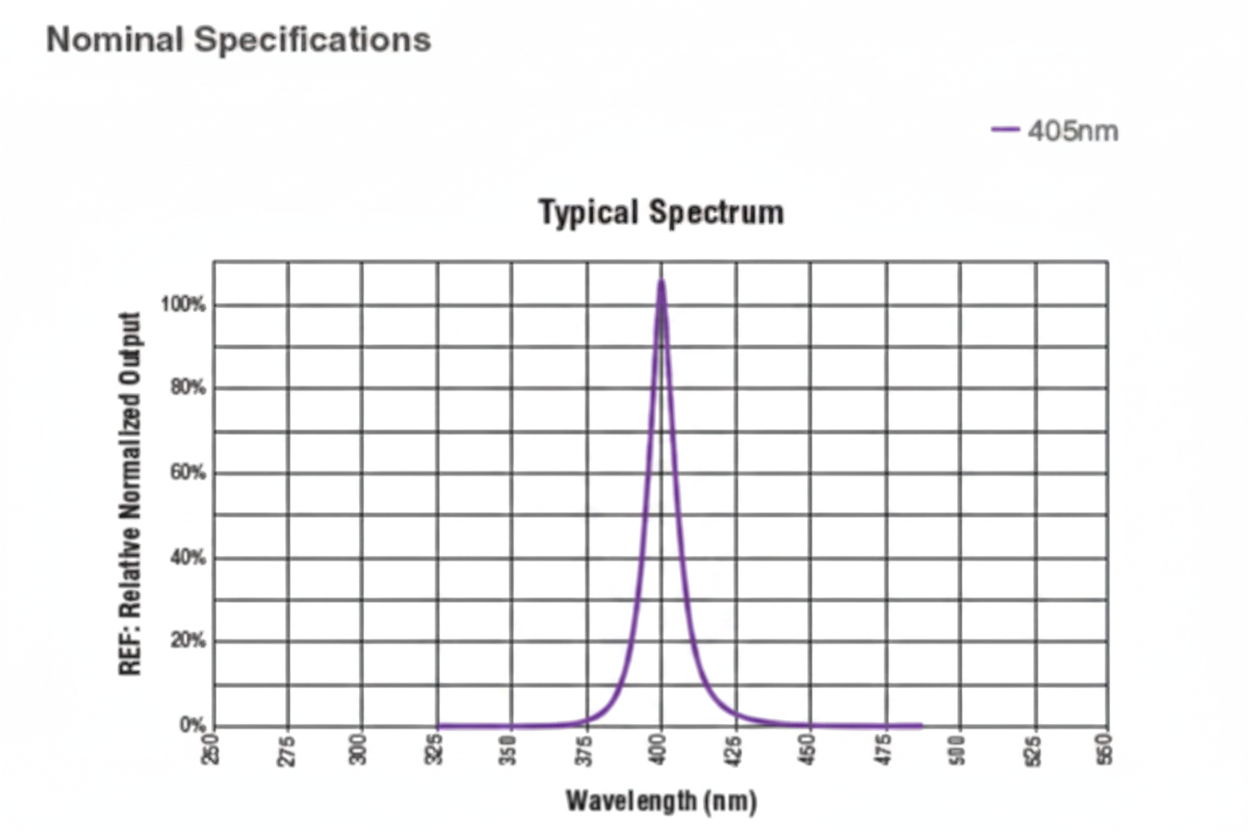

Typical Spectrum - 405nm only
Typical Spectrum - 405nm only

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

(0)

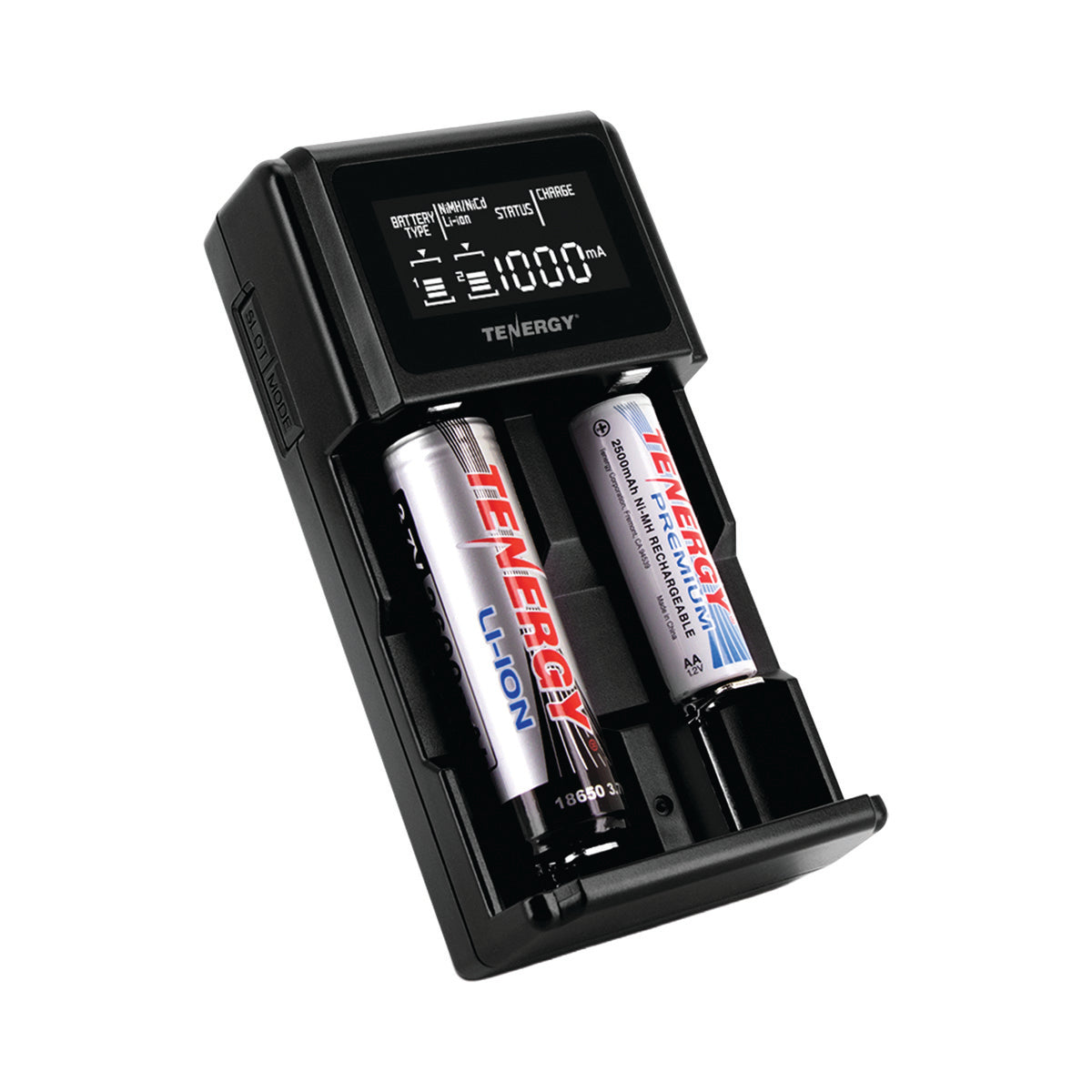

Midori DC365 Spot Cure Pak 3W/ with batteries & Charger - 1005511

Ushio
Sale
Out of stock
$685.00
$685.00 $695.00

Secure checkout

Friendly support

UV Curing Systems

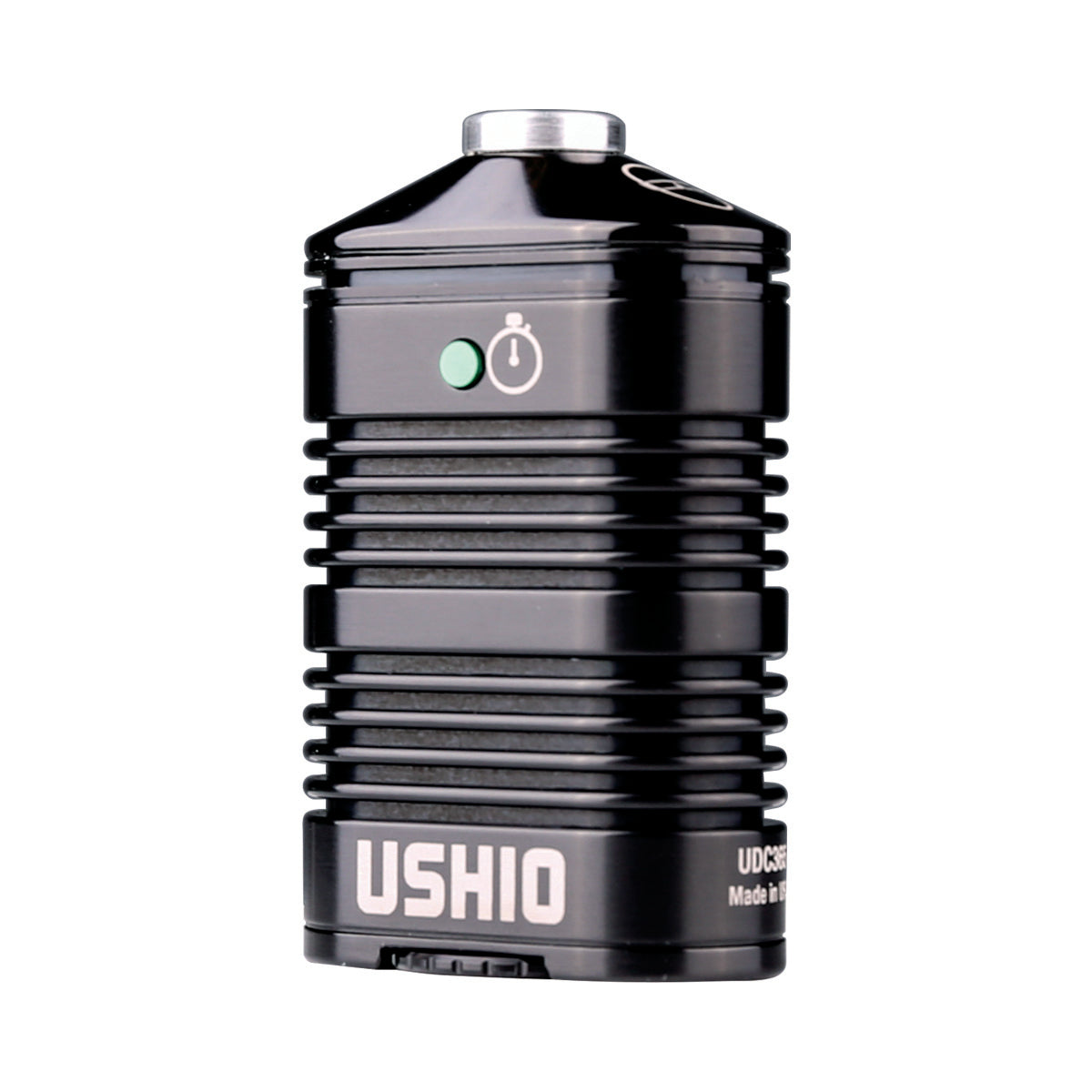

MIDORI™ Spot Cure Series

Portable LED Light Source

Responding to needs of customers with discerning applications, Ushio engineers have developed an exceptional LED portable light source.

The Midori™ portable LED light source series combines state-of-the-art, solid-state illumination technology with Ushio's distinctive optical design to create a compact, lightweight, battery-operated light source with very high output efficacy that is ideal for hand-held industrial applications. This mercury-free, long-life UDC365 portable LED light source, with an instant on/off button switch, exhibits user-programmable capability to set desired exposure times.

Specifications

Dimensions

Length: 24mm (0.94”)

Width: 46mm (1.8”)

Height: 74mm (2.9”)

Weight: 126.8g (4.5 oz)

Illumination System

Type & Power Rating: Light Emitting Diode (LED)

Wavelength: 365nm

LED Electrical Power: 3 Watts


Power System

Power Source: Battery Powered (2 x RCR123A)

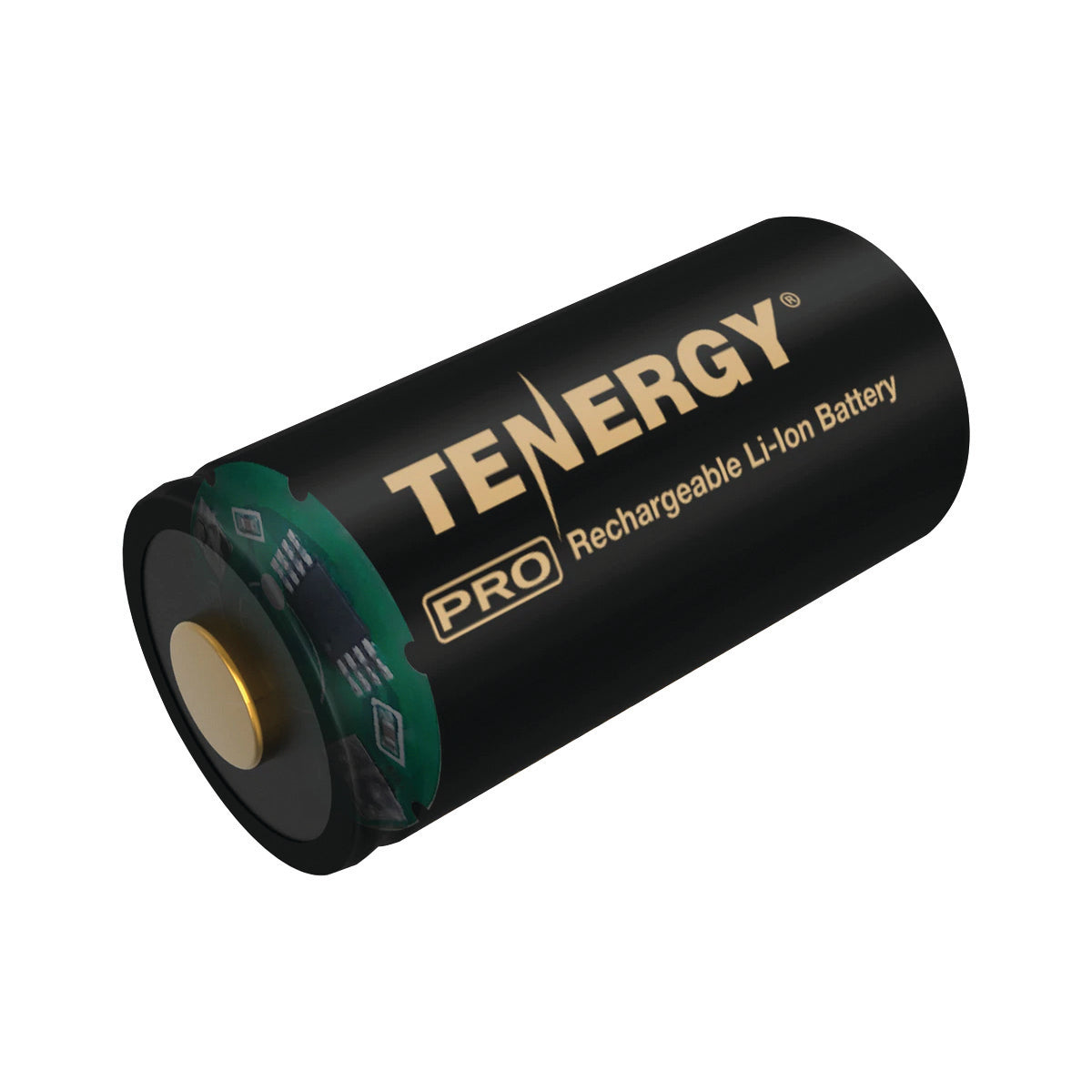

Battery Type: (2) Lithium Ion RCR123A 3.7V, 750mAh Minimum

Battery Life for Continuous Runtime: 80 Minutes

Battery Charge Time: 2 Hours

Battery Recharge Cycles: 500 Charge Cycles


Environment

Operating Ambient Temperature Range: 10°C to 40°C (50°F to 104°F)

Storage Temperature Range: -15°C to 55°C (-5°F to 131°F)

Humidity: 0 – 95% RH

Mode of Operation: Continuous
