Metal Halide Lamps for TV, Film and Stage

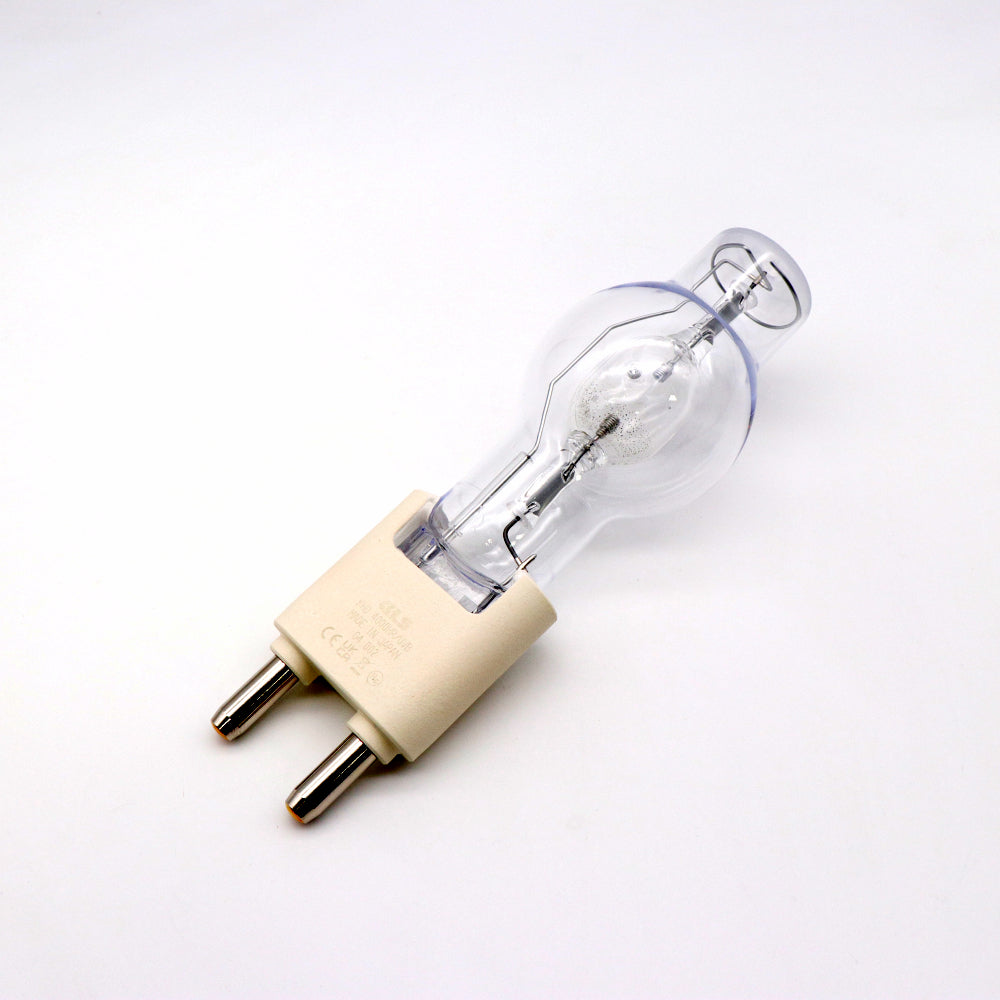

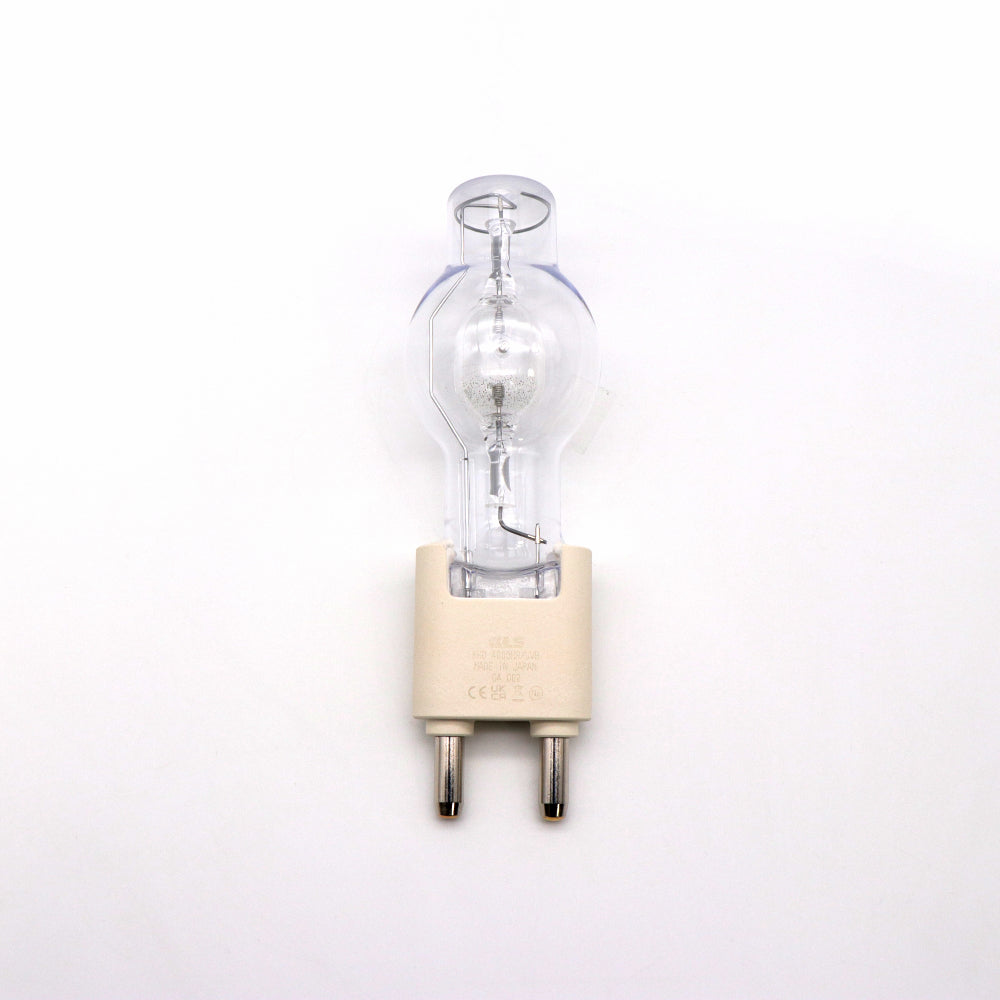

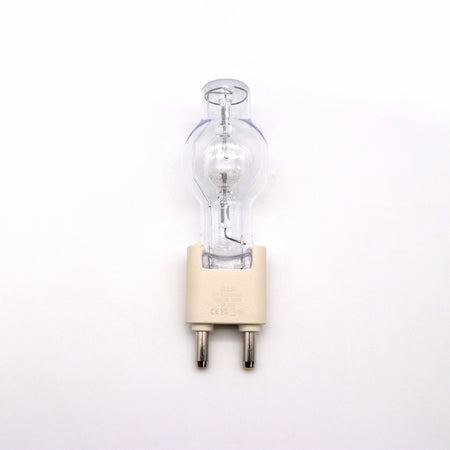

The KLS KHD-4000HR/UVB is a 4000W hot restrike metal halide lamp engineered for the most demanding large-scale production lighting applications. Delivering an extraordinary 380,000 lumens at 6000K daylight color temperature with a CRI of ≥95, it produces the intense, accurate, and natural-looking light required for major film productions, large broadcast studios, and arena-scale stage events. The hot restrike capability allows immediate re-ignition after switch-off — critical in live production environments where every second counts. With a G38 base, 45,000V ignition voltage, and 500-hour rated life, it is a direct cross-reference replacement for Osram HMI 4000W/SE XS & Digital (54321), Philips MSR 4000W HR SE, GE CSR 4000/SE/HR, and Kyoto DIS-40H UV-B lamps.
Specifications
Description: KHD-4000HR
Wattage: 4000W
Base: G38
Lumens: 380,000
Efficacy: 95 lm/W
Color Temp: 6000K
CRI: ≥95
Amperage: 24A
Ignition Voltage: 45,000V
Average Rated Life: 500 hrs
MOL: 255mm
Diameter: 73mm
LCL: 142 ± 1mm
Cross References
- Osram HMI 4000W/SE XS & DIGITAL (54321)
- Kyoto DIS-40H UV-B
- Philips MSR 4000W HR SE
- GE CSR 4000/SE/HR
Kahoku Lighting Solutions Corporation (KLS) has been manufacturing specialty lamps and bulbs in Japan since 1927. With past joint ventures with GTE Sylvania, and Philips Lighting, KLS is now an independent management owned company. With factories in Japan and Vietnam, KLS sources only the highest quality materials ensuring quality and environmental standards with ISO9001 and ISO14001 certifications.
