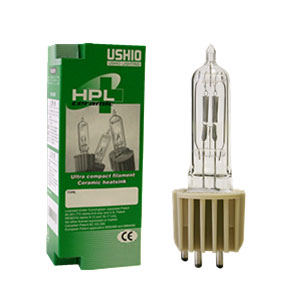

HPL-750/120X+ (Long Life) #62245-USH

HPL Heat Sink Base Lamp

The USHIO HPL-750/120X+ Long Life is a high-performance 750-watt halogen lamp engineered for demanding stage, studio, and theatrical lighting applications. Running at 120 volts with a warm 3050K color temperature, it delivers consistent, brilliant output through its 4-C8 filament design. With an extended 1,500-hour average life and a robust Medium Bi-Pin with Heat Sink base, this lamp is built to keep your production running longer between replacements.

Specifications

Wattage: 750 Watt

Voltage: 120 Volt

Lamp Base Type: G9.5 Bi-Pin with Heat Sink

Color Temperature (K): 3050K

Average Life: 1500 hrs

MOL: 4.09 in.

Filament Type: 4-C8

Manufacturer: USHIO

Manufacturer's Part #: 1003178

Cross Reference: 62245 (Osram HPL 750/120/X)

Since being established in 1967, Ushio and its group companies have evolved to become a photonics solutions provider. Ushio continually invests in educating employees, technical capabilities, and its manufacturing sites across the globe to create solutions for their customers and solve problems with light.

Light solutions at Ushio can range from EUV Semiconductor light sources the size of a bus down to a sensor LED the size of a fingernail. Cinema lamps and laser light projectors are installed for the largest premium screens. Intelligent LED lighting for entertainment production to multispectral medical imaging systems. Architectural lighting creates a beautiful environment while horticulture lamps grow food in optimal conditions to save water and the environment. Care222® technology, developed and researched by Ushio, inactivates viruses when people are present. Ushio is one of the world’s largest specialty light source companies.

Ushio is fundamentally involved in all areas of the electromagnetic spectrum from extreme UV to visible to far IR. Our knowledge of wavelength, power, packaging, module, system as well as active and passive selection enables us to present the best solution for your application.

Ushio HPL Series

HPL+ Compact Filament
Compact Filament Halogen Lamp

The high-performance Ushio HPL+ lamp has been redesigned to be the most powerful HPL ever. Its ultra-compact filament geometry now improves the optical efficiency of your ETC Source Four® fixtures to produce up to 20% more fixture lumens. That’s up to 20% more light from the same fixture as compared to the old lamp design.

Competing HPL lamp products are limited to larger filament dimensions than the Ushio HPL geometry. Working in close cooperation with ETC’s engineers, Ushio has matched the “innovation” of the Source Four® fixture by making a more compact (6.0mm x 9.5mm) filament profile. This improvement partnered with the optics of the Source Four®, generating ultimate axial and radial light distribution and optical system efficiency.

The Source Four® fixtures' precise optics demand precisely engineered lamps. Ushio has responded to the Source Four® fixture's need for a reduced geometry filament and has done so with quality manufacturing standards. Performance you can measure, quality you can count on, variety of lamp types, and innovative design for your theatrical needs

Features & Benefits

• New ceramic heat sink base maintains its resistance to electric conductivity over the life of the lamp
• Tapered pins ensure easy fit into the fixture socket
• Unique compact four & six filament design for more efficient light collection
• Standard and Long-Life versions provide increased light output
• Ushio has the Largest Selection of Voltages and Wattages allowing the user to choose between highest output or longer life
• High efficiency (28.5 lumens per watt average)
• Increased light fixture output of up to 20%
