SKU: 64037-LF
(0)

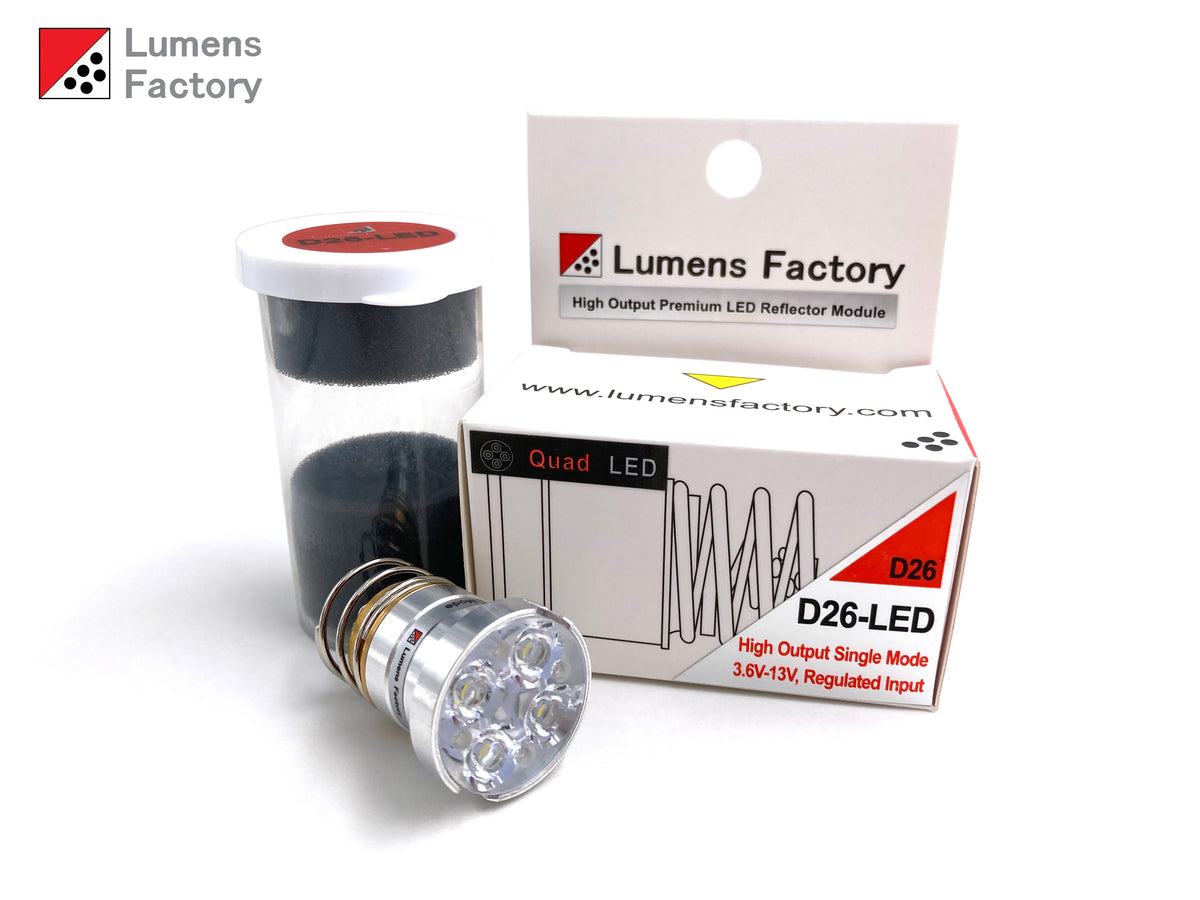

D26-LED Quad LED Module (Gen 2), 3.6V-13V. Nichia 519A (1 Mode) #64037

Lumens Factory
Only 2 left
$64.50

Secure checkout

Friendly support

D26-LED Quad Single Mode LED Reflector Module (3.6V-13V Regulated Input)

Generation 2: (Neutral White) Updated to Nichia 519A R9080 LED from Nichia 319A resulting in higher output and improved tint. (December, 2024)

-High Output Nichia 519A R9080 LED
(Max Output 1275 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Neutral Tint (4000K)
-R9080 90+CRI Ultra High Colour Rendition
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

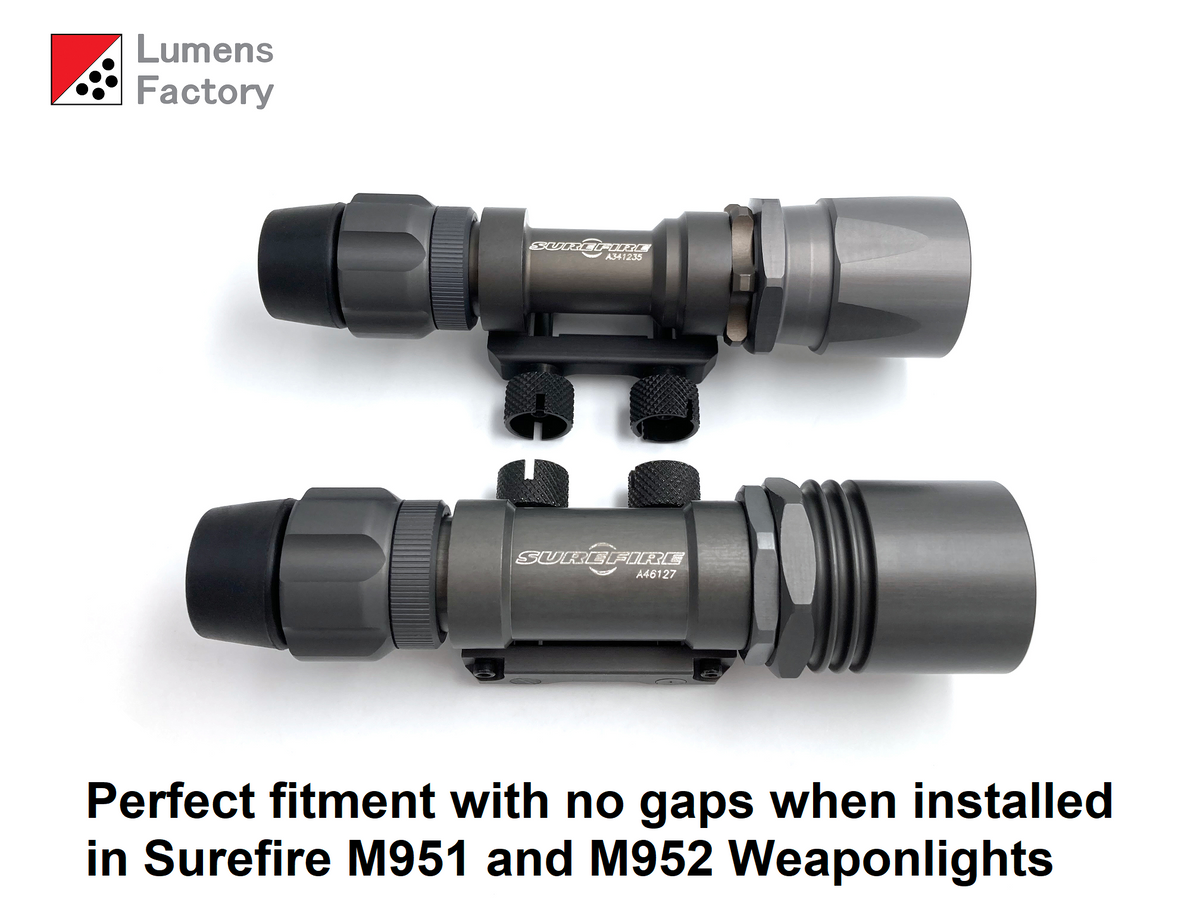

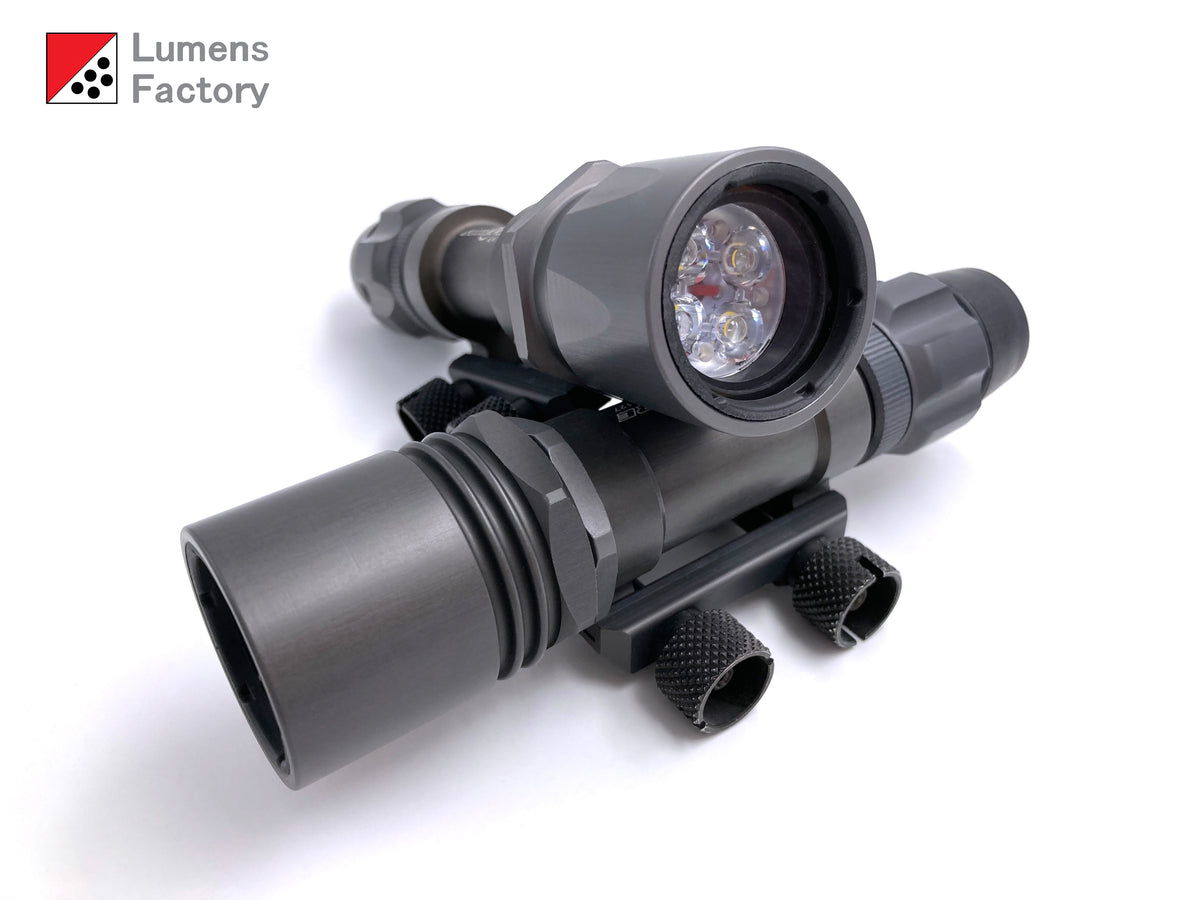

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

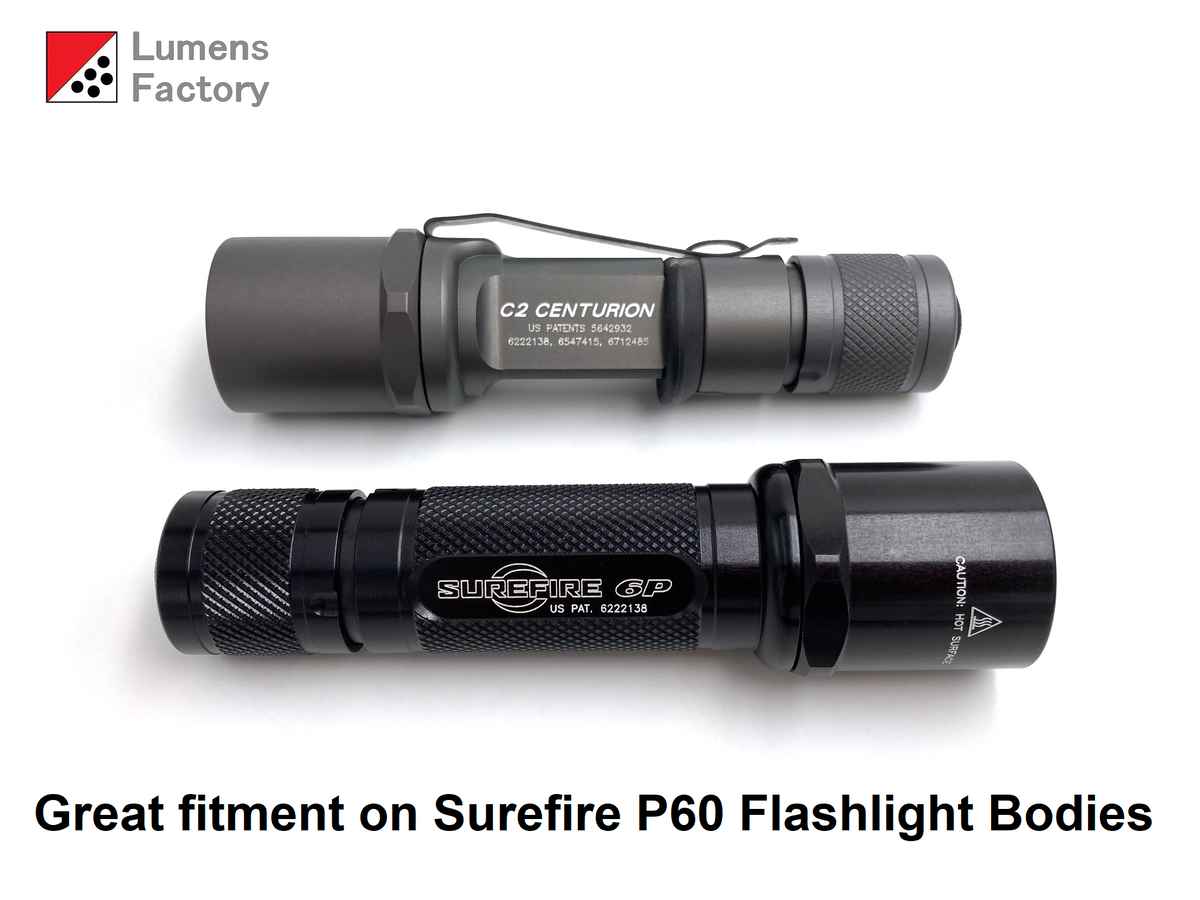

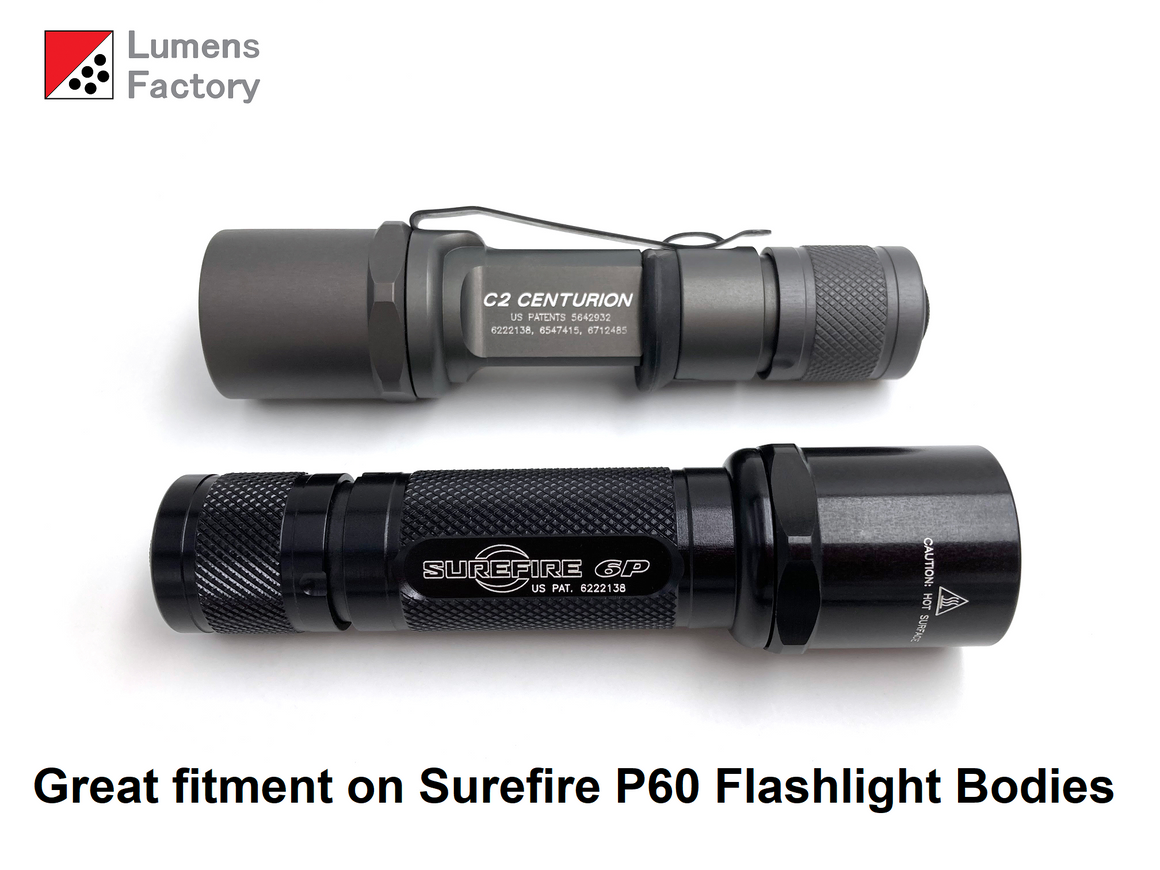

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
